DN20 Stainless Steel Gas Connector Manufacturers

Select the product you want

Home / Products / Gas Connector / Stainless Steel Gas Connector(CSA certificate) / DN20 Stainless Steel Gas Connector

Product Categories

  1. Gas Connector
    1. Stainless Steel Gas Connector(CSA certificate)
    2. Stainless Steel Whistle Free Gas Connector
  2. Plumbing Pipe/Water Liner
    1. Inner Liner/Inner Pipe/Inner Tube
    2. Outer
    3. Nut
    4. Special Specifications
  3. Metal Hose and Compensator

Hot Products

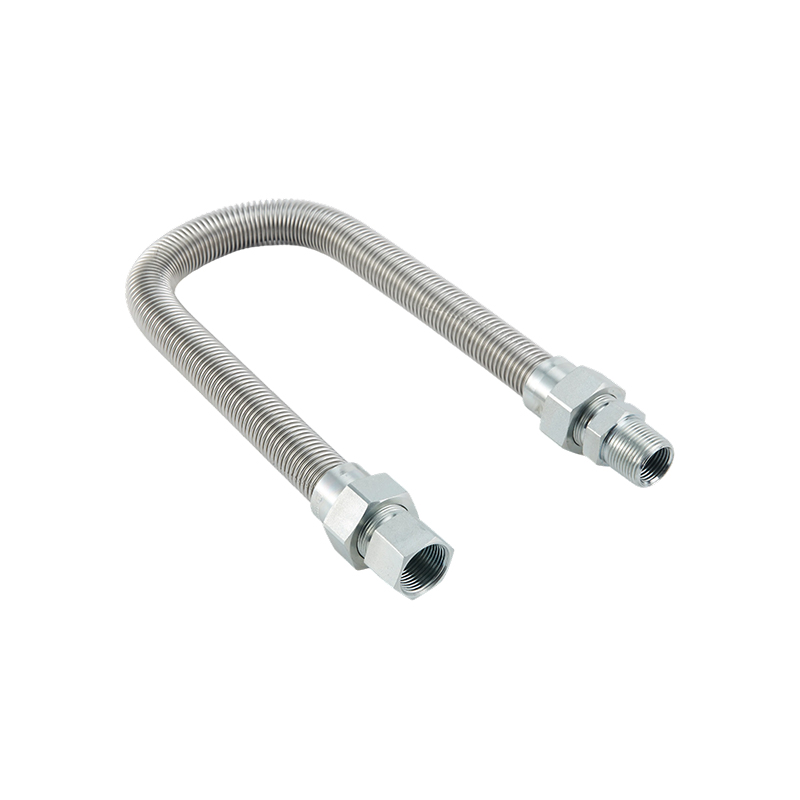

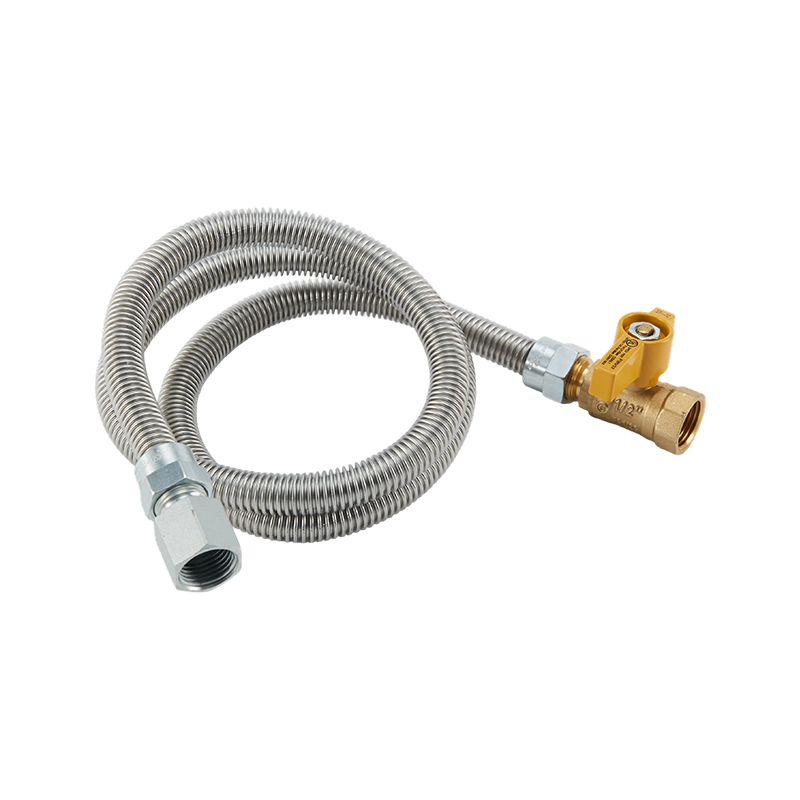

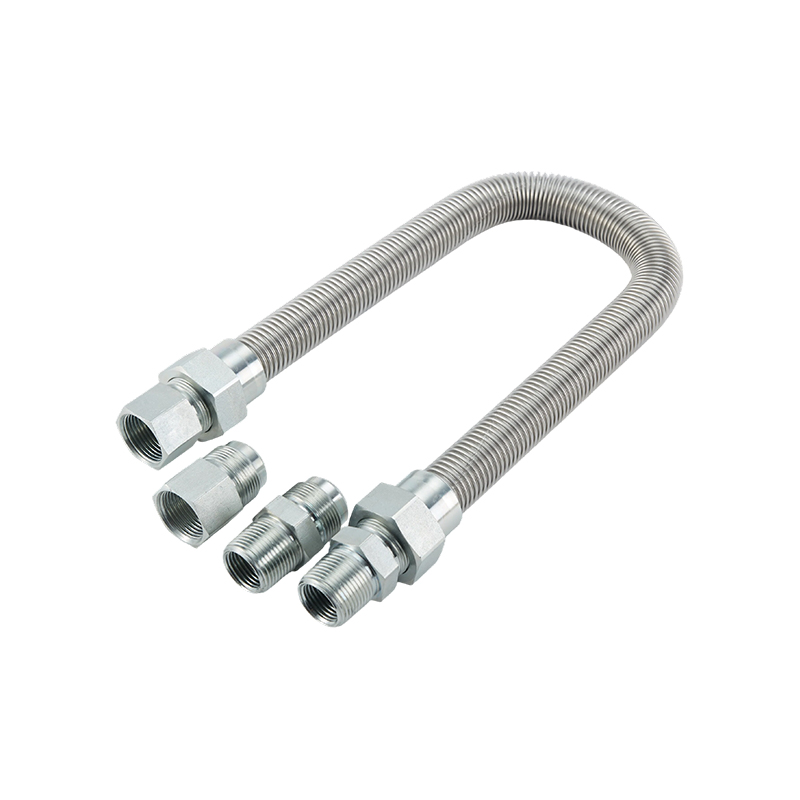

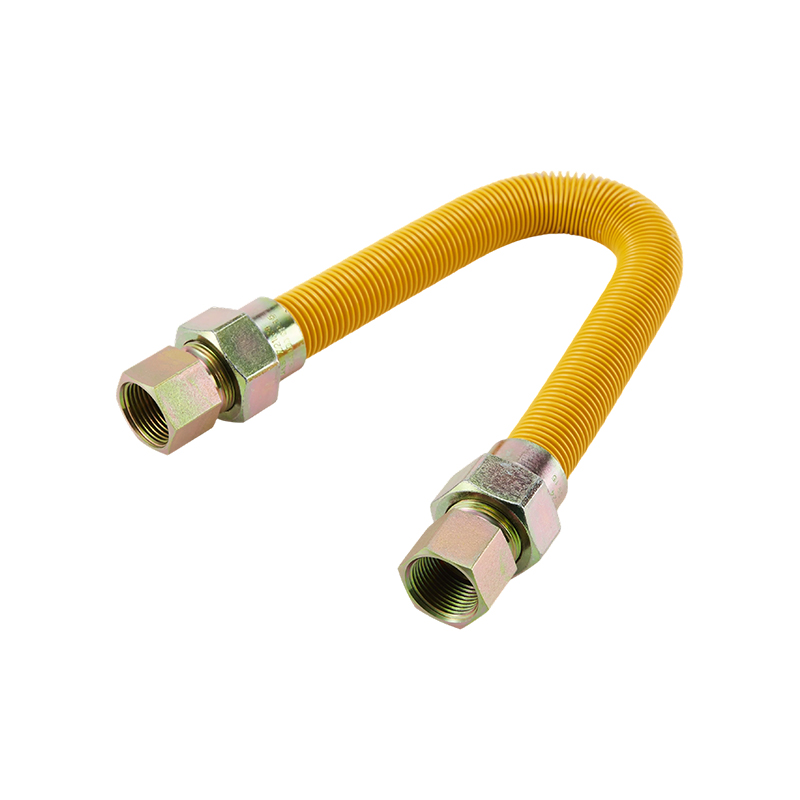

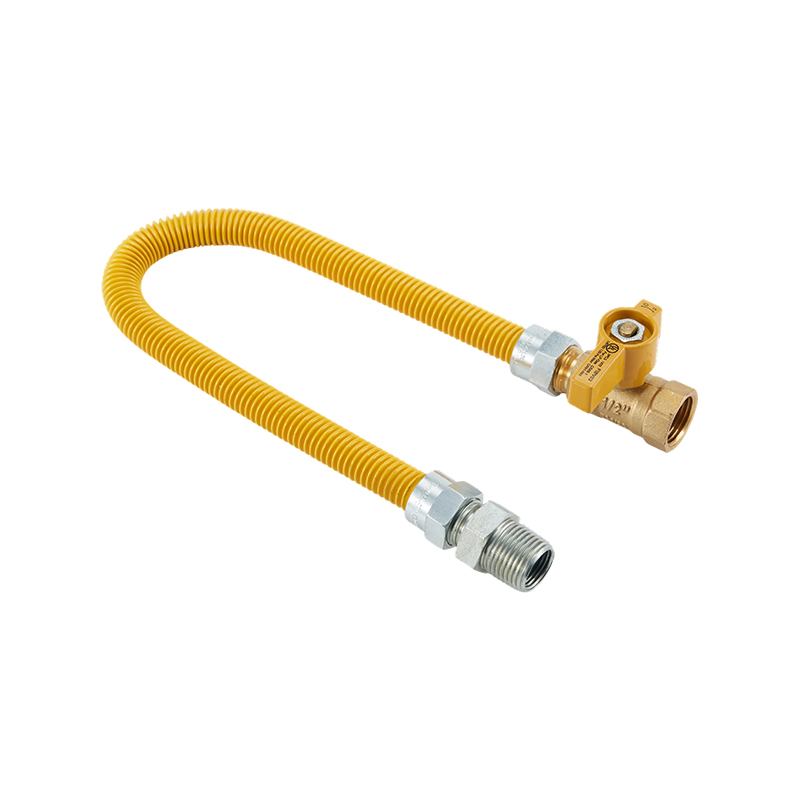

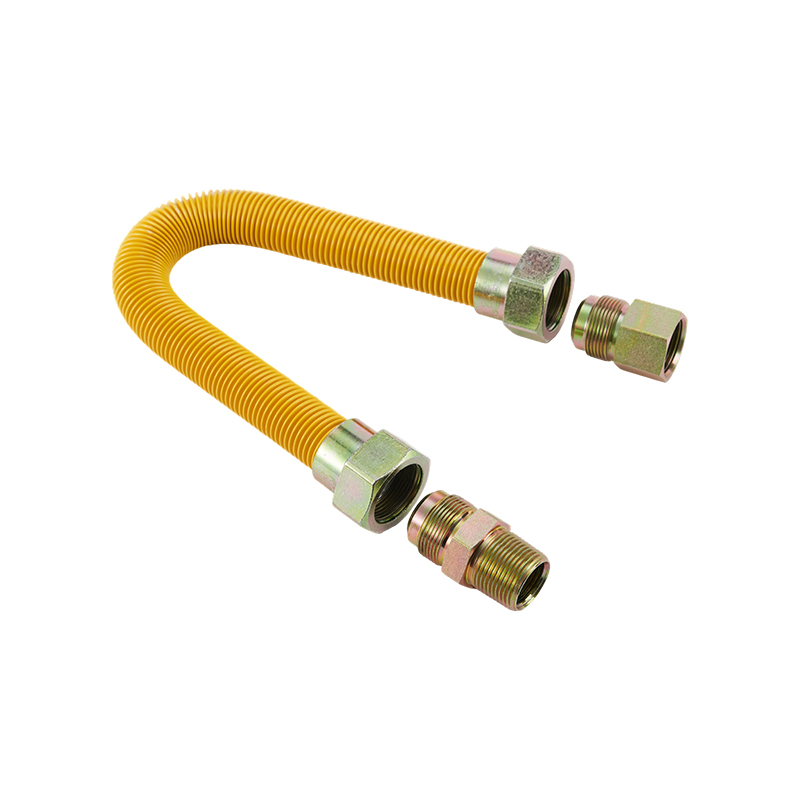

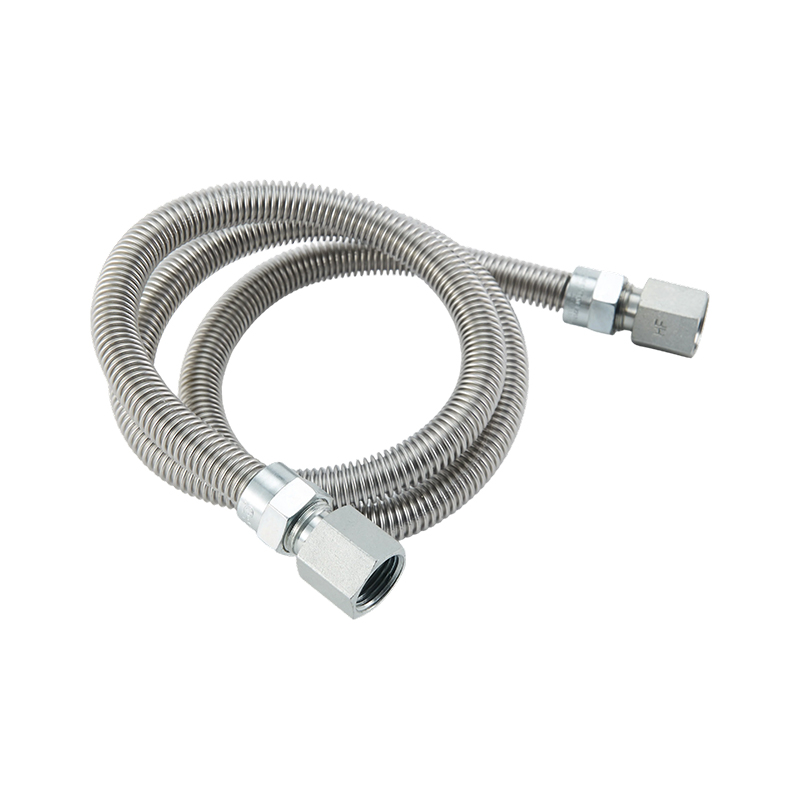

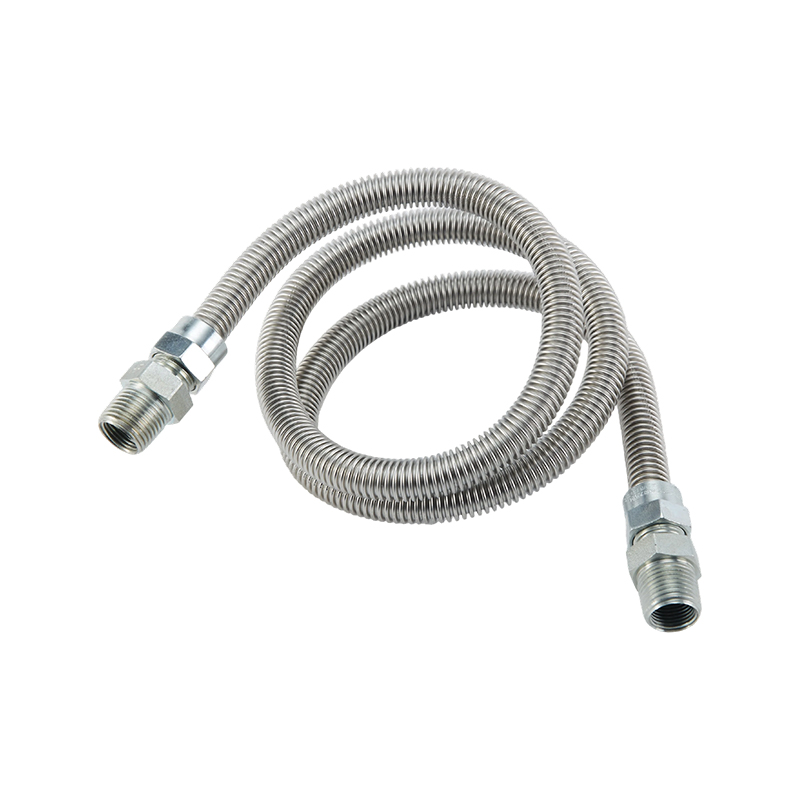

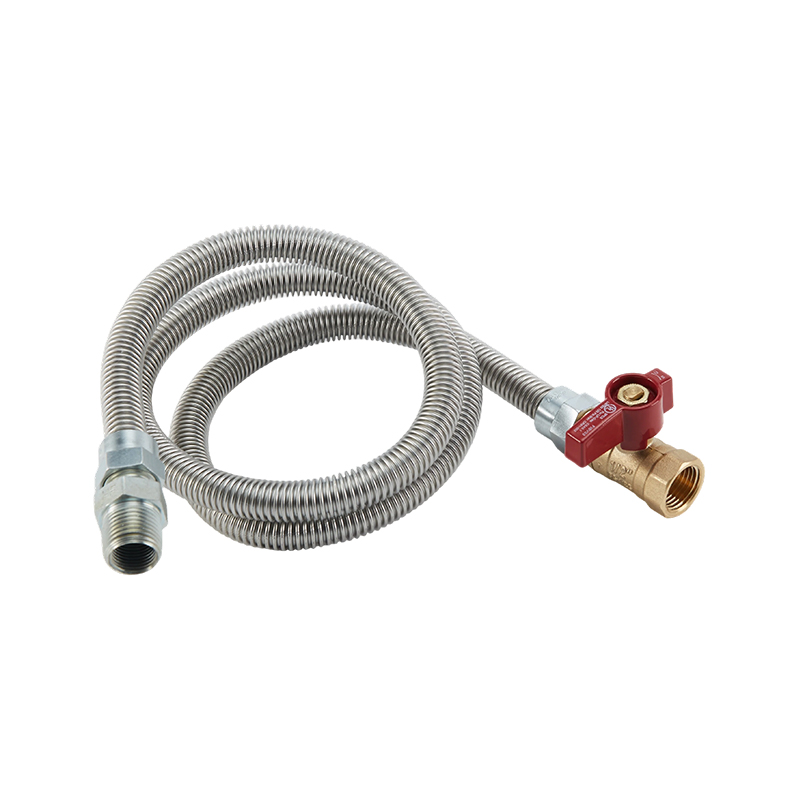

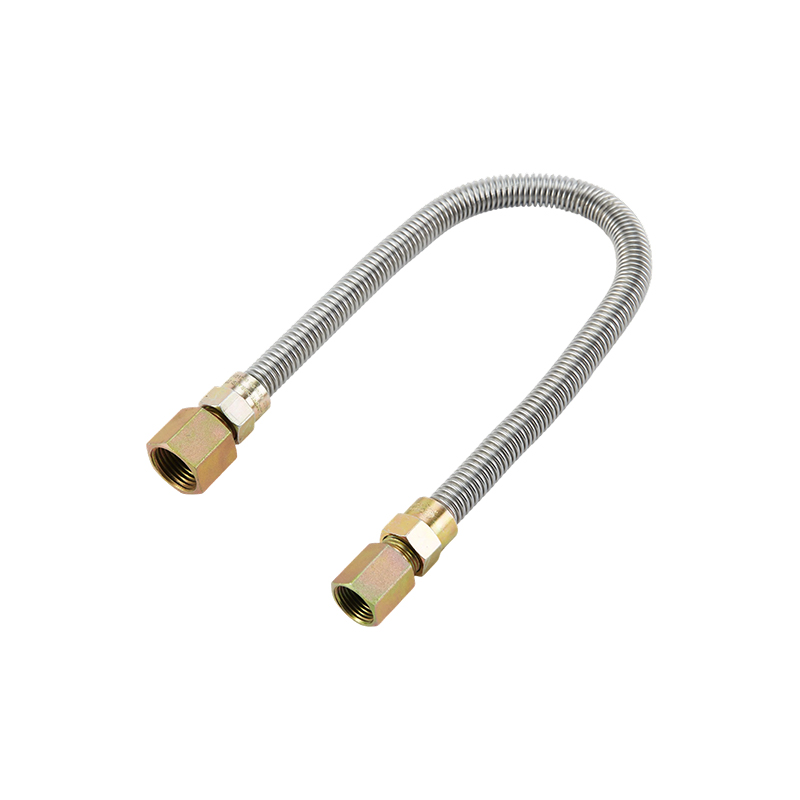

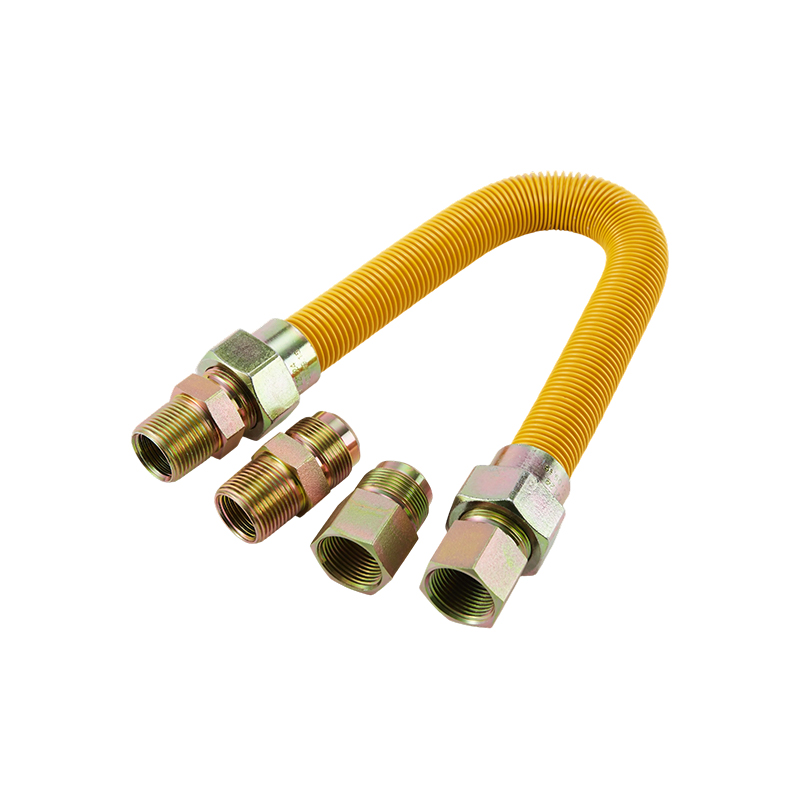

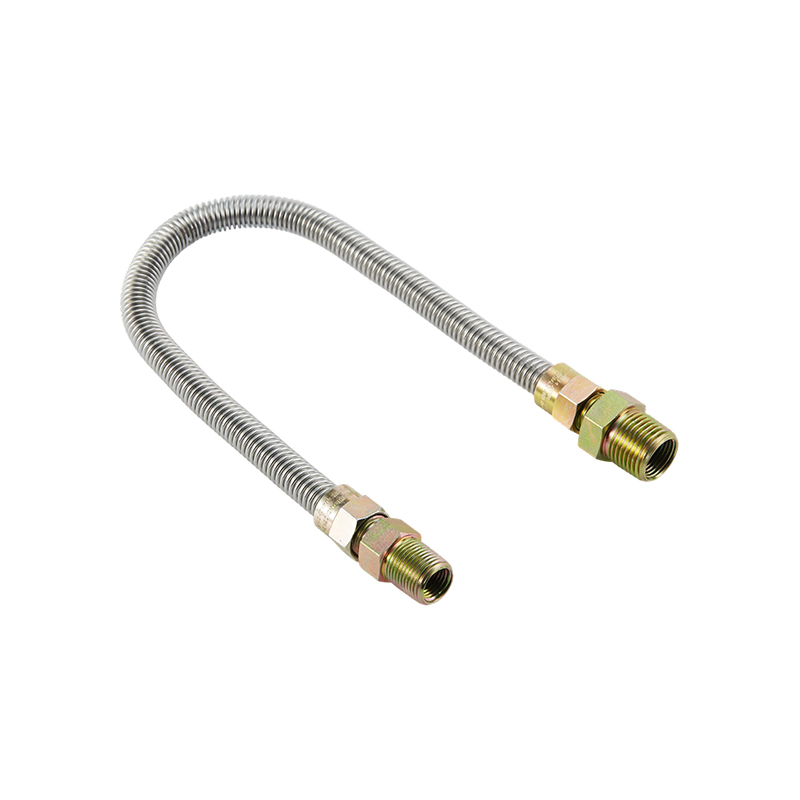

DN20 Stainless Steel Gas Connector

The DN20 stainless steel gas connector is made of 304 stainless steel with a pipe wall thickness of 0.25 mm, offering excellent corrosion resistance and long-term durability.

It is equipped with a 1 1/8"-16UNF flare nut and is available with various adapter specifications, including 1 1/8*3/4M(1/2F) and 1 1/8*3/4F, allowing for flexible adaptation to different pipe diameters and interface requirements.  The connector is available in various lengths, including 12"/18"/24"/36"/48"/60"/72", facilitating gas system installation.

The nut material is available in brass or carbon steel, enhancing pressure resistance and mechanical strength.

Get an inquiry

Product Parameters

Thickness : 0.25mm
Flare Nut : 1 1/8"-16UNF
Adapter 1 1/8*3/4M(1/2F)
1 1/8*3/4F
Size : 12"/18"/24"/36"/48"/60"/72"
Material : 304 stainless steel
Color : Stainless Steel, Yellow,Black
Nut Material : Brass/Carbon Steel
Cover Material :  Non
Seal Form :  Hard sealing
PREV：DN25 Stainless Steel Gas ConnectorNEXT：DN15 Stainless Steel Gas Connector

You may also like

Related products

  • DN20 Stainless Steel Whistle Free Gas Connector

    The DN20 stainless steel whistle-free gas connector is manufactured from high-quality 304 stainless steel with a pipe wall thickness of 0.25 mm, offering excellent corrosion resistance. The connector is equipped with a 1 1/8"-16UNF flare nut and is available with various adapter specifications, including 1 1/8*3/4M(1/2F) and 1 1/8*3/4F, allowing for flexible adaptation to different pipe diameters and interface requirements. The nut is made of brass or carbon steel, and combined with a hard seal design, ensures reliable sealing and prevents leaks.  The product features a natural stainless steel finish, offering both aesthetic appeal and strong functionality.  The whistle-free design effectively reduces airflow noise, providing users with a quieter and more comfortable experience.
  • DN10 Stainless Steel Gas Connector

    This DN10 stainless steel gas connector is designed for residential and commercial gas systems.  Made from high-quality 304 stainless steel with a 0.2mm wall thickness, it is corrosion-resistant and high-temperature resistant, ensuring safe and reliable long-term use. The connector features a 5/8-18UNF flare nut and supports various adapter specifications, including 3/8“OD Flare-3/8” MIP（1/4“FIP), 3/8“OD Flare-3/8” FIP,3/8“OD Flare-1/2” MIP（3/8“FIP), and 3/8“OD Flare-1/2” FIP, providing flexible adaptation to different pipe diameters and interface requirements. A wide range of lengths is available, from 12 inches to 72 inches, facilitating installation in home kitchens, commercial gas equipment, or industrial gas systems.
  • DN12 Stainless Steel Gas Connector

    This DN12 stainless steel gas connector is made of high-quality 304 stainless steel with a wall thickness of 0.25 mm, offering excellent corrosion resistance and durability. It features a 3/4"-16UNF flare nut and is available with various adapter specifications, including 3/43/8M(1/4F), 3/43/8F, 3/41/2M(3/8F), and 3/41/2F, to meet the installation needs of different pipe diameters and interfaces. The connector is available in various lengths: 12"/18"/24"/36"/48"/60"/72", making it suitable for installation in residential, commercial, or industrial gas systems. The nut material is available in brass or carbon steel, offering high strength and excellent pressure resistance. The product comes in a variety of colors, including stainless steel, yellow, and black. Its hard seal design ensures reliable sealing at the interface, eliminating the risk of leaks, making it a safe and reliable choice for gas pipeline connections and equipment installation.
  • DN15 Stainless Steel Gas Connector

    This DN15 stainless steel gas connector is made of high-quality 304 stainless steel with a pipe wall thickness of 0.25 mm, offering excellent corrosion resistance and durability. The connector is equipped with a 15/16"-16UNF flare nut and is available with various adapter specifications, including 15/161/2M(3/8F), 15/161/2F, 15/163/4M(1/2F), and 15/163/4F, allowing for flexible adaptation to different pipe diameters and interfaces. The nut material is available in brass or carbon steel for enhanced strength and pressure resistance.  The product comes in a variety of colors, including stainless steel, yellow, and black.  Featuring a hard seal design, it ensures reliable sealing and prevents leaks, making it a safe and reliable choice for gas pipeline connections and equipment installation.
  • DN25 Stainless Steel Gas Connector

    This DN25 stainless steel gas connector is made of high-quality 304 stainless steel with a pipe wall thickness of 0.25 mm. It offers excellent corrosion resistance and durability, suitable for residential, commercial, and industrial gas systems. The connector is available in various lengths: 12"/18"/24"/36"/48"/60"/72", meeting different installation requirements.  The nut material is available in brass or carbon steel, enhancing strength and pressure resistance, ensuring a secure and reliable pipe connection. The product comes in a variety of finishes, including natural stainless steel, yellow, and black (with colored zinc fittings), combining aesthetics and functionality.
  • DN10 Stainless Steel Whistle Free Gas Connector

    The DN10 stainless steel whistle-free gas connector is made of 304 stainless steel with a pipe wall thickness of 0.2 mm, offering excellent corrosion resistance and durability for long-term stable operation. The connector is equipped with a 5/8-18UNF flare nut and is available with various adapter specifications, including 5/83/8M(1/4F), 5/83/8F, 5/81/2M(3/8F), and 5/81/2F, providing flexible adaptation to different pipe diameters and interface requirements. The product is available in various lengths: 12"/18"/24"/36"/48"/60"/72", facilitating installation in both residential and commercial gas systems. The nut material is brass or carbon steel, combined with a hard seal design to ensure reliable sealing and prevent leaks. Available in stainless steel and black finishes, the product is aesthetically pleasing and highly functional, making it a safe and reliable choice for gas pipeline connections and equipment installation. The whistle-free design effectively reduces airflow noise, enhancing user comfort.
