In modern industry, piping systems are used to transport liquids, gases, steam, and other media, and are widely used in chemical, petroleum, construction, power generation, and other industries. The choice of piping is crucial for the safety, durability, and efficiency of the system. While ordinary pipes (such as carbon steel pipes and PVC pipes) are common and economical, stainless steel bellows have gradually become the preferred choice in many applications due to their unique characteristics and advantages.

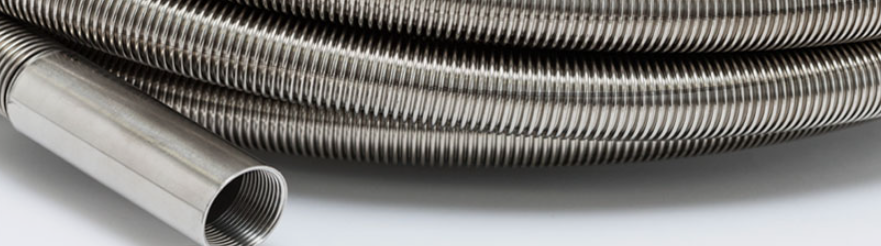

1. Basic Characteristics of Stainless Steel Bellows
Stainless steel bellows are pipes made of stainless steel with a corrugated design. The special corrugated shape of its structure not only gives it high flexibility but also allows it to withstand greater pressure and temperature fluctuations. Due to the use of stainless steel material, this type of pipe has extremely strong corrosion resistance, high-temperature resistance, and pressure resistance, and is widely used in fields requiring high strength, corrosion resistance, and flexibility.
2. Comparison of Stainless Steel Bellows and Ordinary Pipes
The table below lists the main characteristics of stainless steel bellows compared to ordinary pipes:
| Characteristic | Stainless Steel Bellows | Regular Pipes (e.g., Carbon Steel, PVC, Cast Iron, etc.) |
| Material | Stainless steel (e.g., 304, 316 stainless steel) | Carbon steel, PVC, cast iron, etc. |
| Corrosion Resistance | Extremely strong, suitable for corrosive environments (e.g., chemical, marine) | Poor, prone to corrosion, especially with prolonged exposure to moisture or chemicals |
| Pressure Resistance | Excellent, can withstand high internal pressure, suitable for high-pressure systems | Poor, especially plastic pipes that are prone to rupture under high pressure |
| Flexibility | High, can adapt to complex pipeline layouts and environmental changes | Generally low, especially rigid pipes that cannot adapt to complex installations |
| Installation Flexibility | High, can easily adapt to different pipeline paths without excessive elbows and joints | Requires many elbows and joints, installation is complex and lacks flexibility |
| Wear Resistance | Strong, resistant to wear caused by medium flow | Generally low, especially in high flow or environments with solid particles, prone to wear |
| Service Life | Long, suitable for highly corrosive, high-temperature, and high-pressure environments, lifespan can last decades | Generally short, limited by material, may require replacement in a few years |
| Cost | Higher, due to more complex materials and manufacturing processes | Lower, as material costs are cheaper and production processes are simpler |
| Applicable Range | Suitable for special fields like chemical, power, metallurgy, petroleum, natural gas, marine, etc. | Suitable for general liquid or gas transportation, typically used in household, construction, light industry, etc. |
3. Advantages of Stainless Steel Bellows
Strong Corrosion Resistance:
One of the biggest advantages of stainless steel bellows is their excellent corrosion resistance. Compared to ordinary pipes, stainless steel bellows can resist corrosion from strong acids, strong alkalis, seawater, and other corrosive media, making them particularly suitable for use in harsh environments. They provide long-lasting and reliable performance in chemical plants, oil refineries, marine facilities, and other applications.
High and Low Temperature Adaptability:
Stainless steel bellows have excellent temperature resistance, capable of withstanding high temperatures up to 700°C, and maintaining their mechanical properties and flexibility even in low-temperature environments (such as -196°C). This gives stainless steel bellows an irreplaceable advantage in high-temperature steam pipelines, low-temperature cooling systems, and other fields.
High Flexibility and Adaptability:
The corrugated structure design of stainless steel bellows gives them high flexibility, allowing them to adapt to different angles and directions of installation. For environments requiring complex piping systems, such as chemical plants and oil platforms, stainless steel bellows can reduce the number of elbows and joints, avoiding leakage problems caused by loose joints.
High Pressure Resistance:
Stainless steel bellows can withstand higher internal and external pressures, while ordinary pipes are prone to deformation or rupture under high pressure. Especially in piping systems requiring high pressure, stainless steel bellows can effectively ensure the stability and safety of the transportation process.
Long Service Life and Low Maintenance:
The corrosion resistance and wear resistance of stainless steel bellows allow them to maintain stable performance over long-term use, reducing the cost of frequent pipe replacement and maintenance. In contrast, ordinary pipes require regular inspection and replacement due to corrosion, wear, and other factors, increasing operating costs.

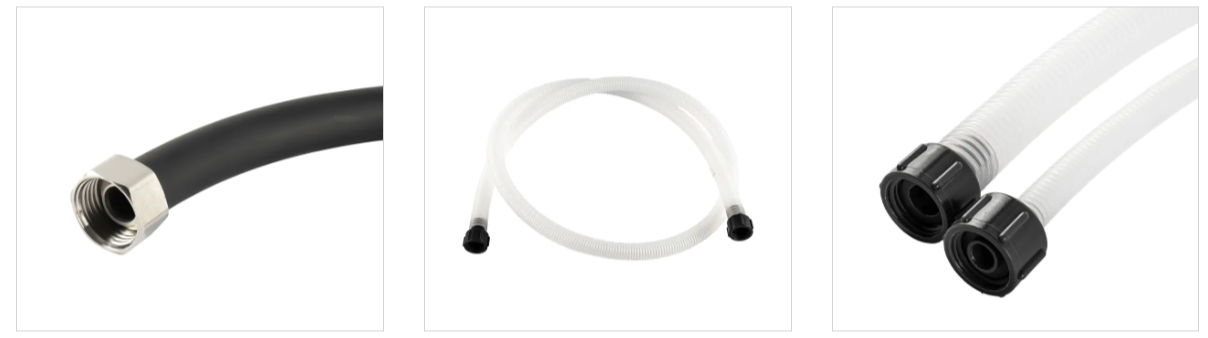

4. Advantages and Limitations of Ordinary Pipes
Although stainless steel bellows have many advantages, ordinary pipes still have their unique value in certain areas.
Lower Cost:
Ordinary pipes (such as PVC pipes, carbon steel pipes, etc.) are made of cheaper materials and have lower manufacturing costs, making them suitable for projects with limited budgets. For some conventional transportation needs with low temperature and pressure requirements, ordinary pipes can fully meet the requirements.
Easy Installation:
The installation technology for ordinary pipes is relatively mature, and the construction difficulty is low, especially in areas such as building and home plumbing, where the installation process is quick and convenient.
Suitable for General Environments:
For environments without special corrosive or high-temperature requirements, ordinary pipes are sufficient to meet daily liquid or gas transportation needs.
However, the limitations of ordinary pipes are also very obvious: their performance in special environments with high corrosion, high temperature, and high pressure is far inferior to that of stainless steel corrugated pipes, easily leading to leaks, damage, or system failure. Therefore, in some critical applications, stainless steel corrugated pipes are undoubtedly a more reliable and safer choice.
